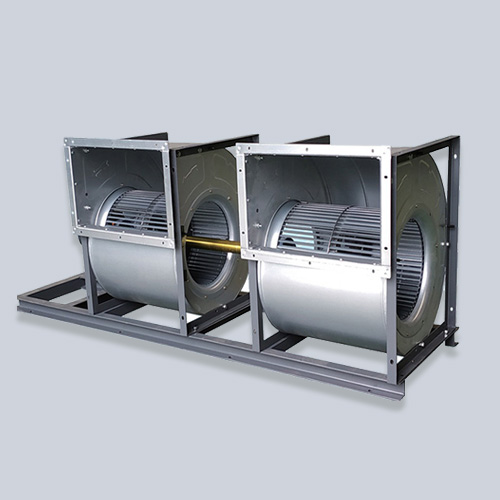

LKPS series double volute forward belt drive centrifugal fan is comprised of connected volute and impeller of two sets of double inlet centrifugal fans, with one motor used to drive two sets of impellers through belt drive at the same time. The structure greatly reduces the volume of the whole machine and can obtain a large ventilation volume in a small installation space. The proper transmission ratio can make the rated working point of the fan match the required working condition well, improve the overall efficiency of the unit, and achieve the purpose of energy saving and environmental protection.
The fluid model of this series of fans has been optimized by CFD advanced technology, which not only increases the output pressure, but also reduces the noise and improves the efficiency. It has the characteristics of energy saving and low noise. It is especially suitable for supporting various air conditioning, refrigeration, purification, air handling unit and other products, and has been widely used in hotels, hotels, schools, hospitals, factories, mines and other fields.
LKPS series of fans can be customized with special matching motors of different voltages and frequencies according to your needs, which is very convenient for application in different countries, regions and fields.
LKPS series of fans has the following remarkable advantages:
- The belt drive mode can select the rated flow and pressure of the fan at will;
- The improved designed forward multi wing impeller with high pressure, low noise, environmental protectionandenergy saving is adopted;
- One motor drives two impellers with compact structure, small size and big outlet air volume;
- Our self-developed matching motors have better reliability and service life than ordinary motors after withoptimization of power;
Work Environment
1) Altitude not more than 1000 meters;
2) The ambient temperature is not lower than – 25 ℃, not higher than 40 ℃;
3) The relative humidity of the environment shall not exceed 90%;
4) The conveying gas does not contain acid, alkaline and corrosive medium, and the dust content is not morethan150mg / m3. When the working environment does not meet the above requirements, it needs to be explained when ordering. Wecan customize the product according to the specific site conditions. Performance Range
Flow: 2700～63800 m3/h
Total pressure: 240～1330 pa
Beyond this range, please choose other series of our fan products, or contact our technical department forcustomization.
